เครื่องรักษาอุณหภูมิช็อกโกแลต เทมเปอร์ริ่งควบคุมอุณหภูมิช็อกโกแลต รุ่น TOP EX

Top EX Professional chocolate tempering machine

New version with removable screw pump of the Top Ex continuous chocolate tempering machine with digital control panel.

This machine stands out on the market of continuous chocolate tempering machines thanks to a new patented system that allows the tempering screw pump to be removed in just a few minutes.



The advantages of using this new chocolate tempering machine are innumerable: most notable of all, the possibility of inserting hazelnut grains, cocoa gruè and any other product into the chocolate to allow chocolate flavouring.



This tempering machine was designed to best meet the needs of the medium to large workshop and is an excellent union of versatility and low running costs.



Volumetric dispenser with pedal to control the flow of chocolate.

Low voltage heated vibrating table.

คุณลักษณะเกี่ยวกับเครื่อง

Top EX Professional chocolate tempering machine

New version with removable screw pump of the Top Ex continuous chocolate tempering machine with digital control panel.

This machine stands out on the market of continuous chocolate tempering machines thanks to a new patented system that allows the tempering screw pump to be removed in just a few minutes.



The advantages of using this new chocolate tempering machine are innumerable: most notable of all, the possibility of inserting hazelnut grains, cocoa gruè and any other product into the chocolate to allow chocolate flavouring.



This tempering machine was designed to best meet the needs of the medium to large workshop and is an excellent union of versatility and low running costs.



Volumetric dispenser with pedal to control the flow of chocolate.

Low voltage heated vibrating table.

Characteristics

  • Ideal for large workshops and small industries.
  • Easily interchangeable between moulding and coating.
  • Tempers 60 Kg of chocolate in 14
  • It is the only model in the range compatible with the Mould loader 175 and Moulding line
  • Direct competitor in hourly production with extremely higher machine.
  • Option to modify to three-phase 220 V – 50/60
  • Heated vibrating table 220 V 24
  • Possibility of removal of the screw pump to allow for quick washing of the machine interior.

EX: Selmi’s patented system that enables the archimedean screw to be removed so that the tempering machine can be cleaned quickly & easily when changing between different chocolate types & flavours.

Innovative technology for artisan chocolatiers.

คุณสมบัติเฉพาะทางเทคนิค

Mechanical Characteristics

Overall dimensions 600[L] x 1100[W] x 1565[H] mm.
Empty weight [Kg.]224
Material in contact with food inox AISI 304L
Gaskets PTFE
Tank capacity [Kg.] 60
No. of pivoting wheel 4 Braked



Cooling System Characteristics

Cooling group [Fr/h] 3000
Refrigerant gas R452A
Refrigerant gas quantity [g]860
Coolant [I]4, 2
70% water, 30% phosphate-free glycol



Electrical characteristics

Total installed power [KW] 3, 5
Supply voltage [VAC] 400/220
Number of phases 1*/ 3
Frequency [Hz] 50 / 60
Auxiliary voltage [Vdc] +24
Enclosure degree of protection IP65
Connection type: industrial plug 16A – 5 poles



Process Features

Tank reducer ratio 1 : 70
Maximum mixer revolutions [rpm] 20
Hourly production [kg/h] 200







วีดีโอเกี่ยวกับเครื่อง











แคตตาล็อก

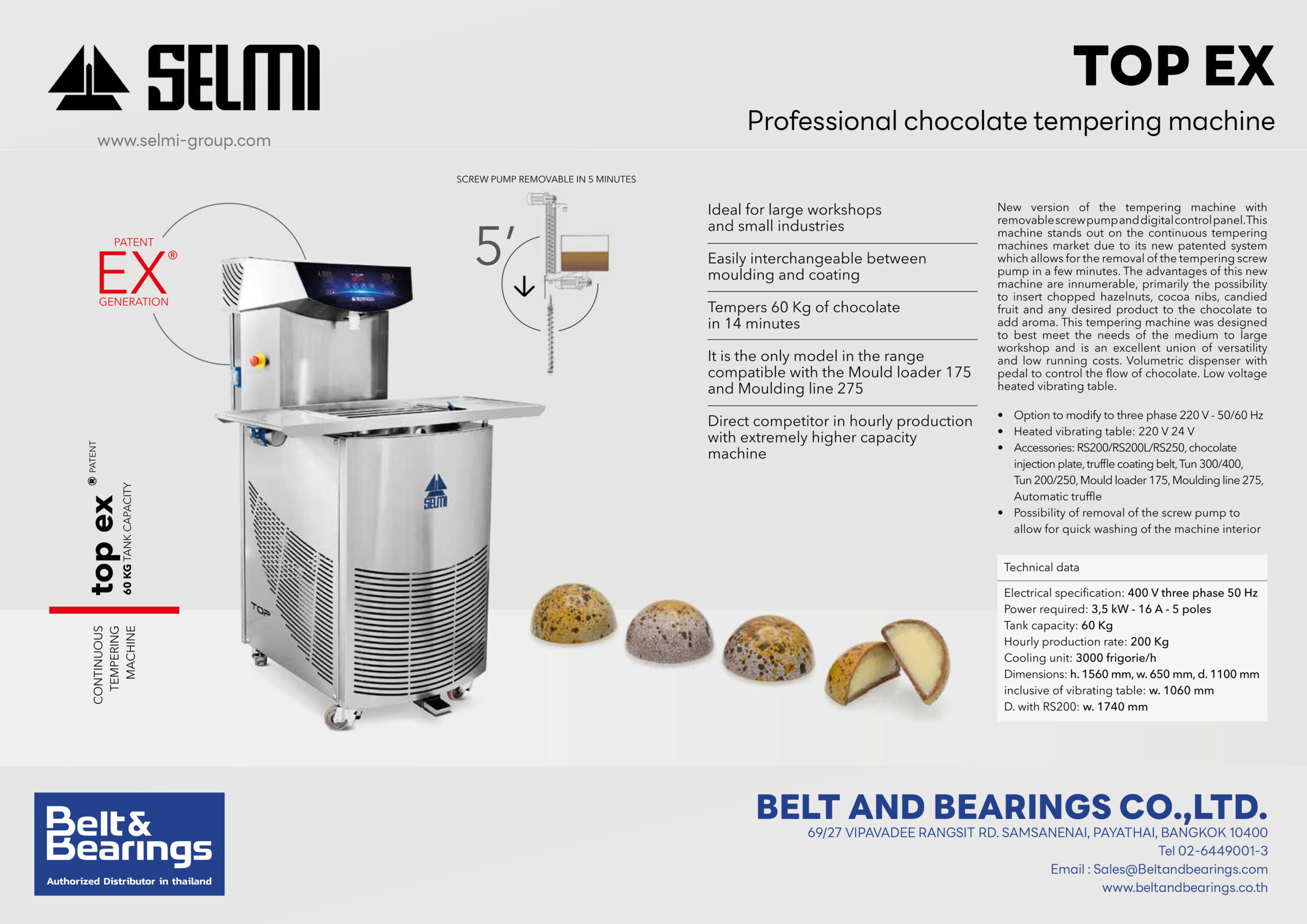

Catalog_เครื่องรักษาอุณหภูมิช็อกโกแลต เทมเปอร์ริ่งช็อกโกแลต รุ่น TOP EX

ภาพผลงาน เครื่องติดตั้งจริงหน้างาน

แสดงวิธีใช้เครื่อง สอนการใช้งาน การบำรุงรักษา

เอกสารรับรอง
