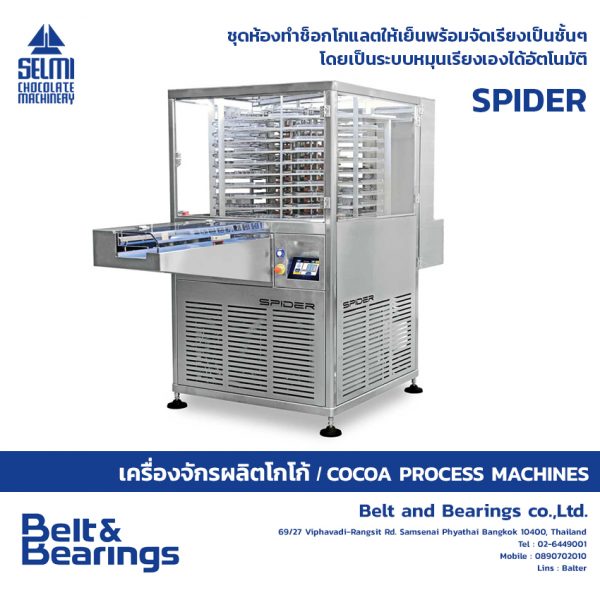

Spider
- Spider was designed to be coupled with Tuttuno and Mould Loader 175. Insertion into the tunnel is timed and assisted by a loading belt.The cooled product exits on the same level as the inserted product to aid with the operator’s productivity.Thanks to the Spider patent, the cool and dry air flows follow the moulds during their journey.
- About the machine
- Specification Table
- Watch Video
- Download Catalog
- Photo from Customers
- How to use and After-service
- Certificate
About the machine
- Spider was designed to be coupled with Tuttuno and Mould Loader 175. Insertion into the tunnel is timed and assisted by a loading belt.The cooled product exits on the same level as the inserted product to aid with the operator’s productivity.Thanks to the Spider patent, the cool and dry air flows follow the moulds during their journey.
Specification Table
| Electrical Specification | 400 V three phase – 50 Hz |
| Power required | 4 Kw – 16 A- 5 poles |
| Optimal Operating temperature | 20/25ºC Maximum 32 ºC |
| Hourly production rate | Depending on the |
| Cooling unit | 3200 frigories/h |
| Dimensions | h 2000 mm, w 2500 mm, d 1150 mm |
Watch Video
Download Catalog
 |
Catalog_Selmi Chocolate Machines |
Photo from Customers
